In the world of modern manufacturing, two technologies stand out: CNC machining and 3D printing. Both have transformed how we create parts, prototypes, and products, but they approach the task in vastly different ways. CNC machining carves precision components from solid blocks, while 3D printing builds objects layer by layer. Wondering which is right for your next project? This article breaks down the differences, pros and cons, applications, and key factors to help you decide between CNC machining and 3D printing.
What is CNC Machining?
CNC (Computer Numerical Control) machining is a subtractive manufacturing process. It uses computer-controlled tools to remove material from a solid block—called a workpiece—to create a finished part. Picture a sculptor chiseling away at stone, but with pinpoint accuracy guided by software.
Common CNC machines include:
- Mills: Cut flat surfaces or complex shapes.
- Lathes: Shape cylindrical parts by rotating the workpiece.
- Routers: Work with softer materials like wood or composites.
CNC machining handles a wide range of materials, such as metals (aluminum, steel, titanium), plastics, wood, and even composites, making it a versatile choice for precision manufacturing.

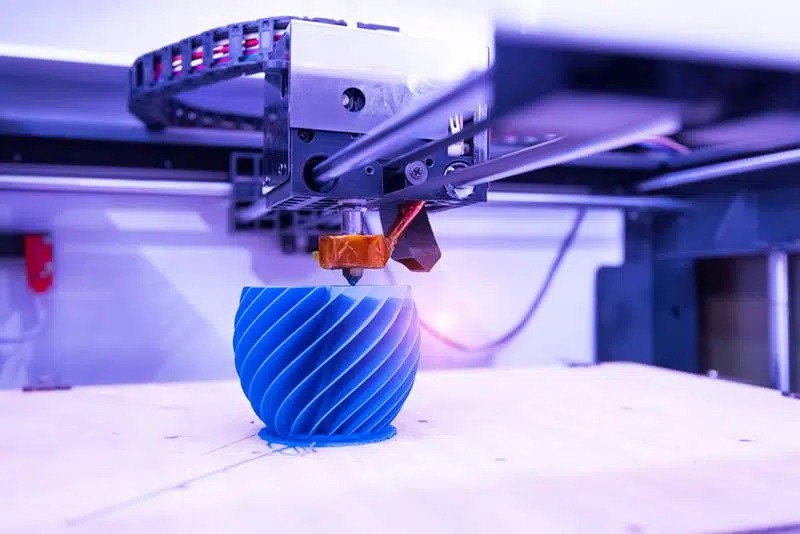

What is 3D Printing?
3D printing, also known as additive manufacturing, builds objects by depositing material layer by layer based on a digital design. Imagine stacking thin slices of clay to form a sculpture—that’s the essence of 3D printing.
Popular 3D printing methods include:
- FDM (Fused Deposition Modeling): Melts plastic filament to form shapes.
- SLA (Stereolithography): Cures liquid resin with a laser for high detail.
- SLS (Selective Laser Sintering): Fuses powdered material (plastic or metal) with a laser.
Materials range from plastics and resins to metals and ceramics, though options vary by printer type. It’s a go-to for rapid prototyping and intricate designs.
Key Differences Between CNC Machining and 3D Printing
CNC machining and 3D printing differ fundamentally in process and outcomes. Here’s how they stack up:
Process: Subtractive vs. Additive
- CNC: Starts with a solid block and removes material to shape the part.
- 3D Printing: Adds material layer by layer to build the object from scratch.
Precision and Accuracy
- CNC: Offers superior precision, with tolerances as tight as 0.001 inches (0.025 mm)—ideal for engineering-grade parts.
- 3D Printing: Varies by method, typically less precise (0.1–0.3 mm), though high-end systems narrow the gap.
Speed and Efficiency
- CNC: Faster for production runs once set up, but initial programming and fixturing take time.
- 3D Printing: Quick for single prototypes, slower for large batches due to layer-by-layer construction.
Cost Considerations
- CNC: Higher upfront costs (machine setup, tooling) but cost-effective for bulk production; generates material waste.
- 3D Printing: Lower setup costs, minimal waste, but material and print time can drive up expenses for scale.
Material Options
- CNC: Broad compatibility—metals, plastics, wood, and more.
- 3D Printing: More limited, with plastics dominating; metal printing is pricier and less common.
Complexity of Designs
- CNC: Struggles with hollow or highly intricate internal features due to tool access limits.
- 3D Printing: Excels at complex geometries, lattices, and custom shapes without extra cost.
Surface Finish
- CNC: Produces smooth, polished surfaces right off the machine.
- 3D Printing: Often requires post-processing (sanding, smoothing) to remove layer lines.
Advantages and Disadvantages
Both technologies shine in different scenarios. Here’s a closer look:
CNC Machining
- Advantages:
- High Precision: Perfect for tight tolerances in industries like aerospace.
- Material Versatility: Works with almost any machinable material.
- Durability: Parts are strong and ready for functional use.
- Scalability: Efficient for medium to large production runs.
- Disadvantages:
- Higher Setup Costs: Requires fixtures, tooling, and skilled programming.
- Material Waste: Excess material is removed, not reused.
- Limited Complexity: Can’t easily produce intricate internal structures.
3D Printing
- Advantages:
- Design Flexibility: Creates complex, organic shapes impossible with CNC.
- Rapid Prototyping: Fast turnaround for one-off designs or iterations.
- Minimal Waste: Uses only the material needed for the part.
- Disadvantages:
- Lower Precision: Not ideal for parts requiring exact tolerances.
- Weaker Materials: Plastic parts may lack the strength of machined metal.
- Slower for Scale: Batch production lags behind CNC efficiency.
Applications and Use Cases
Each technology has its sweet spot in real-world applications:
CNC Machining Applications
- Aerospace: Turbine blades, brackets, and structural components requiring precision and durability.
- Automotive: Engine blocks, gears, and suspension parts made from robust metals.
- Medical: Surgical tools and implants crafted from titanium or stainless steel.
3D Printing Applications
- Prototyping: Concept models for product design, from gadgets to furniture.
- Custom Parts: Dental aligners, hearing aids, or bespoke jewelry.
- Complex Structures: Lightweight lattices for aerospace or heat exchangers.
For example, Boeing uses CNC machining for aluminum aircraft parts, while startups 3D print plastic prototypes to test concepts before scaling up.
Choosing the Right Technology for Your Project
Deciding between CNC machining and 3D printing depends on your project’s needs. Consider these factors:
- Budget: CNC is costlier upfront but cheaper per unit in bulk; 3D printing suits low-volume runs.
- Timeline: 3D printing wins for quick prototypes; CNC excels for fast production after setup.
- Material Needs: Need metal strength? Go CNC. Plastic or resin? 3D printing works.
- Part Complexity: Intricate or hollow designs favor 3D printing; simple, precise shapes suit CNC.
- Production Volume: Small batches or one-offs lean toward 3D printing; larger runs favor CNC.
Examples:
- Precision Metal Gears: CNC machining for durability and accuracy in bulk.
- Custom Plastic Prototype: 3D printing for a unique, low-cost test model.
Future Trends and Developments
Both technologies are evolving rapidly:
- CNC Machining: Automation, AI-driven toolpaths, and hybrid machines (combining subtractive and additive) improve efficiency.
- 3D Printing: Faster printers, stronger materials (e.g., carbon-fiber composites), and larger build volumes expand its reach.
These advancements blur the lines, with hybrid systems potentially offering the best of both worlds in the future.
Conclusion
CNC machining and 3D printing each bring unique strengths to the table. CNC shines with precision, material variety, and production scalability, while 3D printing excels in design freedom and rapid prototyping. The right choice hinges on your project’s goals—evaluate your budget, timeline, and part requirements to pick the best tool.
