CNC (Computer Numerical Control) machines are the backbone of modern manufacturing, offering precision, efficiency, and versatility. Whether you’re milling, turning, or drilling, these machines rely on a complex system of components working together seamlessly. As a leading CNC machine manufacturer, we at Dongguan HIRUNG Precision Machinery Co., Ltd. understand the importance of high-quality components in delivering exceptional performance. In this guide, we’ll break down the key components of a CNC machine, explain their roles, and provide insights to help you appreciate the engineering behind these powerful tools.

Understanding the Basics of CNC Machines

Before diving into the components, it’s worth understanding what makes CNC machines unique. Unlike manual machines, CNC systems use pre-programmed software to control tools and machinery with pinpoint accuracy. This automation relies on a combination of mechanical, electrical, and software-based elements, each critical to the machine’s operation.

Key Components of a CNC Machine

Let’s explore the essential components that make up a CNC machine, from the frame to the control panel.

1. Machine Frame (Bed or Base)

The machine frame, often called the bed or base, is the foundation of any CNC machine. It provides structural support and stability during high-speed operations. Typically made from cast iron or steel, the frame absorbs vibrations and ensures the machine remains rigid under heavy workloads. A sturdy frame is vital for maintaining precision, especially in advanced systems like 5-axis machining centers.

2. Spindle

The spindle is the heart of a CNC machine, responsible for rotating the cutting tool (in milling machines) or the workpiece (in lathes). It’s driven by a motor and can operate at varying speeds depending on the material and task. High-quality spindles, often equipped with precision bearings, ensure smooth operation and longevity. For example, our CNC 5-axis machining centers (like the DU and DV series) feature robust spindles designed for intricate, multi-angle cuts.

3. Tooling System

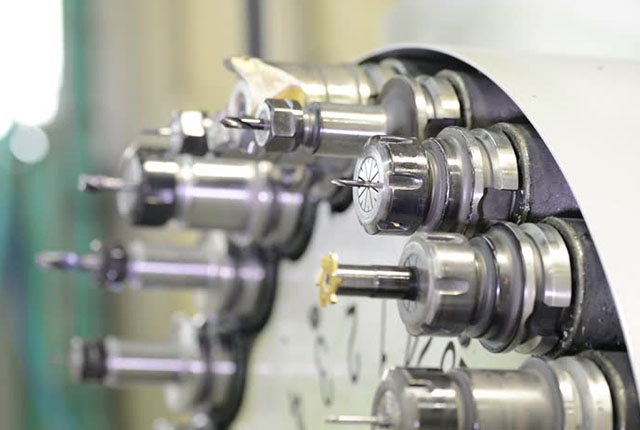

The tooling system includes the cutting tools and tool holders. Tools vary based on the operation—milling cutters, drills, or turning tools—and are selected for their compatibility with the workpiece material. The tool holder secures the tool to the spindle, often using systems like BT, CAT, or HSK standards. Automatic tool changers (ATCs) are common in advanced CNC machines, allowing seamless switching between tools during complex jobs.

4. Worktable

The worktable holds the workpiece in place during machining. It can be stationary (as in gantry-style machines) or movable (as in table-moving designs like our SP series). Worktables often include T-slots or clamping systems to secure materials. In 5-axis machines, the table may tilt or rotate, adding flexibility for multi-sided machining.

5. Axes and Drive Systems

CNC machines operate along multiple axes—typically 3, 4, or 5—depending on their complexity. The drive system, consisting of motors (servo or stepper) and ball screws, moves the spindle or table along these axes. Linear guides ensure smooth, precise motion. For instance, our EV series vertical machining centers use high-precision drive systems to deliver consistent results.

6. Control Unit (CNC Controller)

The CNC controller is the brain of the machine, interpreting G-code from the software and translating it into mechanical movements. It’s typically a computer or a dedicated panel with a user interface. Modern controllers offer features like real-time monitoring and error detection, making them essential for efficient operation.

7. Motors

Motors power the spindle and axis movements. Servo motors are widely used for their precision and responsiveness, while stepper motors are more cost-effective for simpler machines. The choice of motor impacts speed, torque, and accuracy—key factors in high-quality CNC performance.

8. Coolant System

Machining generates heat, which can damage tools and workpieces. The coolant system circulates liquid (often water-based) or air to reduce temperatures and remove chips. Effective coolant delivery enhances tool life and surface finish, a priority in our precision assembly process.

9. Feedback Systems (Sensors and Encoders)

Feedback systems, such as encoders and sensors, monitor the machine’s position and speed in real time. They ensure the spindle and axes follow the programmed path accurately, correcting deviations instantly. This precision is a hallmark of high-end CNC machines.

10. Power Supply

A stable power supply drives the motors, controller, and other electrical components. Backup systems or voltage stabilizers are often included to prevent disruptions, especially in industrial settings.

How These Components Work Together

Each component plays a specific role, but their synergy is what makes CNC machines so effective. The controller sends signals to the motors, which move the spindle or table along the axes. The tooling system cuts the workpiece secured on the table, while the coolant system manages heat and debris. The frame keeps everything stable, and feedback systems ensure accuracy. This integrated design allows CNC machines to handle everything from simple drilling to complex 5-axis milling.

Factors to Consider When Evaluating CNC Machine Components

When choosing or assessing a CNC machine, the quality of its components is critical. Here are some factors to keep in mind:

• Material Quality: High-grade steel or cast iron in the frame and precision bearings in the spindle enhance durability.
• Precision Standards: Look for machines with strict accuracy testing, ensuring tight tolerances.
• Compatibility: Ensure the tooling and controller support your specific applications.
• After-Sales Support: Reliable service for component maintenance or replacement is a must.

The Importance of Quality Components in CNC Performance

Low-quality components can lead to vibration, poor finishes, or frequent breakdowns. In contrast, well-crafted parts—like those we prioritize in our manufacturing process—ensure reliability and precision. For example, our gantry machining centers (HPG and SP series) use premium materials and rigorous testing to meet international standards, making them trusted across 33 countries.

Conclusion

Understanding the components of a CNC machine is key to appreciating its capabilities and choosing the right equipment for your needs. From the sturdy frame to the sophisticated controller, each part contributes to the machine’s precision and efficiency. At Dongguan HIRUNG Precision Machinery Co., Ltd., we’re committed to crafting high-quality CNC machines—like our 5-axis machining centers and vertical lathes—using premium materials and advanced technology. Our goal is to deliver tools that meet global demands while sharing industry knowledge through guides like this. Whether you’re a manufacturer, distributor, or enthusiast, we hope this breakdown empowers you to explore the world of CNC machining with confidence.
