A 9-axis CNC machine is an advanced, highly versatile machining center that integrates the full 5-axis milling capabilities with additional axes of motion, typically from a secondary spindle and turret, to perform complex milling and turning operations on all sides of a workpiece in a single setup. This “done-in-one” manufacturing approach represents the pinnacle of efficiency and precision, answering the industry’s growing demand for intricate components with minimal human intervention. As a dedicated manufacturer of precision CNC equipment, we at Hirung have seen firsthand how multi-axis technology is transforming modern production floors. This guide will demystify the 9-axis machine, explaining how it works, where it excels, and what to consider before adopting this powerful technology.
First Principles: How Do We Define Axes in CNC Machining?
To truly appreciate what a 9-axis machine can do, it’s essential to first understand the fundamental building blocks of CNC motion. The term “axis” refers to a direction of movement or rotation that a machine’s tool or workpiece can execute. These movements are precisely controlled by a computer, allowing for repeatable and highly accurate manufacturing.
The 3 Linear Axes: The Foundation of Movement (X, Y, Z)
The most basic CNC machines operate on three linear axes. Imagine a simple graph. The X-axis represents left-to-right movement, the Y-axis represents front-to-back movement, and the Z-axis represents up-and-down movement. This three-dimensional Cartesian coordinate system allows the cutting tool to move anywhere within a cubic workspace. A standard 3-axis milling machine is perfect for drilling holes, cutting profiles, and surfacing the top of a part, but it cannot easily machine undercuts or side features without reclamping the part in a new orientation.

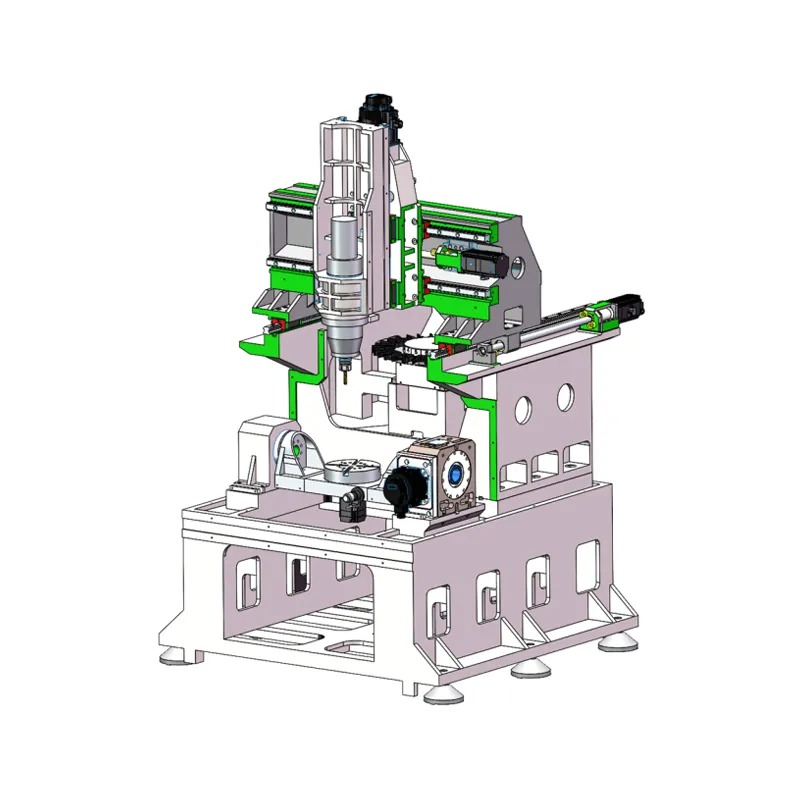

Adding Rotation: Understanding 5-Axis CNC Machining (A, B, or C Axes)
To overcome the limitations of 3-axis machining, two rotational axes are added. These axes rotate around the linear axes:
- The A-axis rotates around the X-axis.
- The B-axis rotates around the Y-axis.
- The C-axis rotates around the Z-axis.
A 5-axis machine uses the three linear axes (X, Y, Z) plus any two of these three rotational axes. This allows the tool to approach the workpiece from a much wider range of angles. For instance, a trunnion-style 5-axis machine might feature an A-axis and a C-axis, allowing the workpiece itself to tilt and rotate. This capability enables the machining of complex contours, deep cavities, and angled features without needing to stop and manually reposition the part, which is a massive leap in efficiency and accuracy.
So, What Exactly Differentiates a 9-Axis CNC Machine?
Here is where a common point of confusion arises. A 9-axis machine does not feature nine independent axes of motion working on a single cutting tool simultaneously. Instead, the term “9-axis” describes a hybrid machine that combines two distinct but coordinated machining systems within a single frame.
The Anatomy of a 9-Axis System: It’s About Two Systems in One
A typical 9-axis machining center is essentially a combination of a 5-axis milling machine and a multi-axis CNC lathe. The configuration often looks like this:
- System 1 (Main Spindle): A 5-axis milling head (X, Y, Z, B, C axes) that performs complex contouring and milling operations.
- System 2 (Sub-Spindle): A second spindle that acts like a lathe, capable of gripping the part and performing turning operations. This sub-spindle often has its own set of axes—typically linear movement (e.g., another Z-axis) and rotation (a second C-axis). Combined with a tool turret, this part of the system can have 4 controllable axes.
By combining a 5-axis milling system with a 4-axis turning/milling system, you arrive at a total of nine controllable axes. The machine’s controller is powerful enough to manage all these axes, coordinate part transfers between the main spindle and sub-spindle, and execute simultaneous machining where one tool works on the front of the part while another works on the back.
Simultaneous vs. 5+4 Configuration: Clarifying the “9-Axis” Term
The key takeaway is that 9-axis capability is less about simultaneous motion and more about process integration. The machine is designed to take a raw piece of stock and produce a fully finished component without it ever leaving the machine’s enclosure. The main spindle might perform complex 5-axis surfacing on one side (Operation 10), then the sub-spindle moves in, grabs the part, and pulls it away. The main spindle’s work is done. Now, the sub-spindle presents the backside of the part to a turret of tools to perform turning, drilling, and milling operations (Operation 20). This seamless, automated handoff is the true power of a 9-axis system, which is why it’s often referred to as a “5+4” configuration.
Why Invest in a 9-Axis CNC Machine? The Key Advantages
The decision to invest in such sophisticated technology comes down to several transformative benefits that directly impact a manufacturer’s bottom line and capabilities.
Unparalleled Complexity and “Done-in-One” Machining
The most significant advantage is the ability to produce extraordinarily complex parts in a single cycle. Geometries that would traditionally require five or six separate operations on multiple machines (a lathe, a 3-axis mill, a 5-axis mill) can be completed in one go. This “done-in-one” or “single-clamping” philosophy unlocks design possibilities for engineers and makes manufacturing previously impractical parts feasible.
Superior Precision and Surface Finish
Every time a part is unclamped and moved to a new machine, the risk of positioning errors is introduced. Even the most skilled machinist cannot perfectly replicate a setup. By keeping the part in a single clamping from start to finish, 9-axis machines eliminate the cumulative errors associated with multiple setups. This results in significantly higher dimensional accuracy and part-to-part consistency. Furthermore, the ability to orient the tool and workpiece perfectly relative to each other allows for the use of shorter, more rigid tools, which reduces tool deflection and chatter, leading to a superior surface finish.
Drastically Reduced Cycle Times and Labor Costs
While the programming may be complex, the on-the-floor execution is incredibly efficient. A 9-axis machine eliminates time spent on:
- Moving parts between machines.
- Creating multiple complex fixtures for different operations.
- Manual inspection and setup between each operation.
- Idle time waiting for the next machine to be available.
This consolidation dramatically shortens the total production time (floor-to-floor time) and frees up skilled operators to focus on higher-value tasks rather than simply loading and unloading machines.
A Comparative Look: 9-Axis vs. 5-Axis vs. 3-Axis Machining
To help put this technology in context, this table compares the key features of 3-axis, 5-axis, and 9-axis CNC machines.
| Feature | 3-Axis CNC Machine | 5-Axis CNC Machine | 9-Axis CNC Machine |
|---|---|---|---|
| Part Complexity | Low (Prismatic parts, flat surfaces) | High (Complex contours, undercuts, angled features) | Extremely High (Milled and turned features on all part faces) |
| Number of Setups | Multiple setups for multi-sided parts | One or two setups typically | One setup (“Done-in-One”) |
| Cycle Time | Long due to multiple setups | Reduced compared to 3-axis | Shortest possible for complex parts |
| Accuracy & Precision | Good, but risks error with each new setup | Very high due to fewer setups | Highest possible, as setup errors are eliminated |
| Initial Cost | Low | High | Very High |
| Ideal Applications | Brackets, plates, simple molds | Impellers, medical implants, aerospace components | Blisks, complex medical devices, defense systems, intricate valve bodies |
Real-World Applications: Where Do 9-Axis Machines Create Value?
The capabilities of 9-axis machining are not just theoretical; they are creating tangible value in the world’s most demanding industries:
- Aerospace and Defense: For manufacturing “blisks” (bladed disks) for jet engines, complex structural components, and guidance system housings that require both turning and intricate 5-axis milling.
- Medical: For producing orthopedic implants like knee or hip joints, which have organic, contoured surfaces, as well as complex surgical tools that must be machined from tough materials like titanium or stainless steel.
- Energy: For creating intricate valve bodies, turbine blades, and components for downhole drilling tools, where performance and reliability are paramount.
- High-Performance Automotive: For prototyping and producing motorsport components like custom pistons, complex transmission parts, and turbocharger impellers.
The Challenges and Considerations of Adopting 9-Axis Technology
As with any cutting-edge technology, adopting a 9-axis platform is a significant undertaking. A balanced perspective requires acknowledging the challenges involved.
The Significant Initial Investment
These machines represent a major capital expenditure. The cost is not just for the machine itself but also for the specialized tooling, high-end work-holding, and facility preparations required. The ROI is typically justified for high-volume production of complex parts or for job shops specializing in high-value, low-volume prototype work.
The Brains Behind the Machine: Advanced CAM/CAD Programming
Effectively programming a 9-axis machine requires powerful and expensive Computer-Aided Manufacturing (CAM) software. The programmer must be an expert not only in tool paths but also in machine kinematics, simulation, and collision avoidance. Creating an efficient and crash-free program is a highly skilled task.
The Skill Requirement: The Need for Highly Trained Machinists
While the machine automates many processes, the operator who sets up, troubleshoots, and oversees the machine must be highly skilled. They need a deep understanding of multi-axis machining principles, G-code, and the intricacies of the specific machine controller. Finding and retaining this level of talent is a key consideration for any company looking to invest.
The Future is Multi-Axis: Hirung’s Perspective on Advanced Machining
The trend in manufacturing is undeniable: parts are becoming more complex, tolerances are getting tighter, and the demand for efficiency and automation is higher than ever. Technologies like 9-axis machining are no longer a niche curiosity; they are a strategic solution to these modern challenges. While not every shop needs a 9-axis machine today, understanding this technology is crucial for planning for the future.
At Hirung, our philosophy is built on providing robust, precise, and technologically advanced CNC solutions that empower our customers. We see multi-axis and multi-tasking machines as central to the evolution of smart manufacturing and Industry 4.0. By consolidating operations, reducing waste, and enabling the creation of next-generation components, these machines are not just cutting metal—they are creating a competitive advantage.
Whether you are exploring 5-axis capabilities or contemplating the leap to a fully integrated “done-in-one” solution, the journey begins with knowledge. We encourage you to think about where your manufacturing needs are headed and how advanced technology can help you get there. If you have any questions about multi-axis technology or want to discuss which CNC solution is right for your application, our team of experts is here to help.
