A CNC Vertical Lathe, often abbreviated as VTL or Vertical Turning Lathe, is a powerful machine tool where the workpiece is mounted on a horizontal, rotating chuck and the cutting tools approach it from the side in a vertical orientation. This configuration uniquely utilizes gravity to secure and stabilize large, heavy, and short workpieces, making it the ideal solution for industries like aerospace, energy, and heavy machinery manufacturing. Unlike their horizontal counterparts, VTLs excel at machining components such as large rings, flanges, and gear blanks with exceptional precision and efficiency. At Hirung, we specialize in engineering robust and precise CNC lathes, and this guide distills our expertise to help you understand the capabilities and applications of these incredible machines.
Vertical Lathe vs. Horizontal Lathe: What’s the Key Difference?

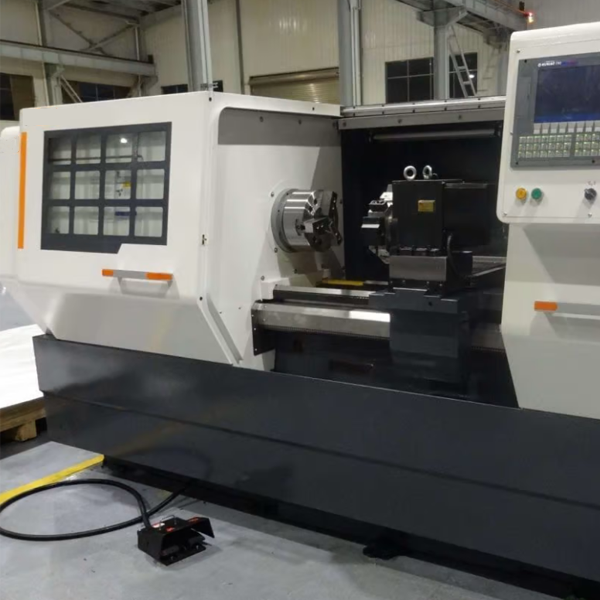

The primary distinction between a vertical and horizontal lathe lies in the orientation of the spindle and, consequently, how the workpiece is held. For anyone deciding which machine is right for their application, understanding this fundamental difference is crucial. A horizontal lathe holds the workpiece between a chuck and a tailstock along a horizontal axis, making it perfect for long, slender parts like shafts or rods. A CNC vertical lathe, however, mounts the workpiece flat on a horizontal chuck that spins like a potter’s wheel. This simple change in orientation has profound implications for stability, workpiece size, and floor space.
Gravity is the deciding factor. In a horizontal lathe, gravity pulls a heavy workpiece downwards, which can cause sag and introduce inaccuracies, requiring robust support from a tailstock. In a VTL, gravity is an asset. It pushes the workpiece firmly onto the chuck, ensuring a secure and stable setup without complex fixturing. This makes VTLs the undisputed champions for machining heavy, large-diameter parts that would be difficult or impossible to mount in a horizontal machine.
| Feature | CNC Vertical Lathe (VTL) | CNC Horizontal Lathe |
|---|---|---|
| Spindle Orientation | Vertical (Workpiece sits on a horizontal spinning table) | Horizontal (Workpiece is held along a horizontal axis) |
| Effect of Gravity | Advantageous; helps secure the workpiece onto the chuck. | A challenge; can cause part sagging, requiring tailstock support. |
| Ideal Workpiece Shape | Large-diameter, short, heavy, and disc-shaped parts (e.g., flanges, gears, rings). | Long, slender, and shaft-like parts (e.g., axles, rods, barrels). |
| Workpiece Loading | Easier for heavy parts; can be loaded from above with a crane. | Can be challenging for heavy parts; requires careful alignment. |
| Floor Space Footprint | Generally smaller footprint for a given swing diameter. | Longer footprint, especially for machines handling long parts. |
| Chip Evacuation | Relies on gravity and coolant flow to clear chips from the flat surface. | Excellent chip evacuation as they fall away from the workpiece. |
Anatomy of a CNC Vertical Lathe: Core Components Explained
Understanding the core components of a VTL is key to appreciating its function and capabilities. While sharing principles with other CNC machines, its unique structure is purpose-built for heavy-duty vertical turning. At Hirung, the design of these components is meticulously engineered for maximum rigidity and precision.
The Chuck (or Table)
The chuck, sometimes called the table, is the large, flat, rotating circular plate where the workpiece is mounted. This is the horizontal work-holding surface that defines the VTL. Its large diameter and robust construction are designed to support immense weight while spinning at high speeds with minimal runout. The chuck features T-slots or jaws for clamping the workpiece securely, and its quality is directly linked to the machine’s overall accuracy.
The Tool Turret and Ram
The tool turret holds the cutting tools. In a VTL, this is mounted on a vertical ram that moves up, down, left, and right (along the Z and X axes). The ram is a heavy, rigid slide that extends to bring the cutting tool into contact with the workpiece. Modern VTLs often feature automatic tool changers and turrets that can hold numerous tools, enabling complex machining operations without manual intervention. The rigidity of the ram and turret assembly is critical for preventing chatter and achieving fine surface finishes.
The Spindle and Drive System
While the chuck rotates, it’s the spindle and its associated drive system that provide the power and rotational motion. Housed beneath the chuck, the spindle is supported by high-precision bearings to handle both the massive downward force (thrust load) from the workpiece and the rotational (radial) loads during cutting. A powerful motor drives the spindle, providing the high torque necessary for heavy cuts on tough materials.
The Base and Column(s)
The entire machine is built upon a massive, heavily-ribbed base, typically made from cast iron to absorb vibration and ensure stability. Arising from this base is one or two vertical columns. This structure supports the cross rail, which in turn supports the ram and tool turret. Single-column VTLs are suitable for smaller-diameter parts, while double-column designs provide superior rigidity and support for machining extremely large and heavy components, forming a rigid bridge-like structure over the workpiece.
How Does a CNC Vertical Lathe Work? The Turning Process
The machining process on a CNC Vertical Lathe is a symphony of controlled motion, guided by a computer program. The fundamental principle is turning: removing material from a rotating workpiece using a stationary cutting tool. Here is a step-by-step breakdown of how a typical operation unfolds:
- Programming: An engineer or programmer creates a set of instructions using G-code and M-code. This program dictates every movement of the machine, including the chuck’s rotational speed, the tool’s path, feed rates, and coolant activation.
- Workpiece Loading: The raw material or workpiece is loaded onto the horizontal chuck. For very large parts, this is often done using an overhead crane, one of the key practical advantages of the VTL design. The part is then securely clamped in place.
- Tool Selection: The machine’s CNC controller activates the tool turret, which rotates to select the correct cutting tool for the first operation as specified in the program.
- Machining: The chuck begins to spin at the programmed speed (RPM). The vertical ram, holding the tool, moves along the X-axis (horizontally) and Z-axis (vertically) to bring the cutting edge into contact with the workpiece. It performs operations like facing (creating a flat surface), turning (reducing the diameter), boring (enlarging an internal hole), grooving, and threading.
- Tool Changes and Operations: For complex parts, the program will call for multiple tool changes. The turret retracts, selects a new tool (e.g., a drill or a finishing tool), and the process continues until the part is complete.
- Completion and Unloading: Once the program finishes, the chuck stops spinning, and the finished component is unclamped and removed, ready for inspection or the next stage of production.
Why Choose a CNC Vertical Lathe? Unpacking the Advantages
The decision to invest in a VTL is driven by a clear set of benefits that make it superior for specific types of work. These advantages stem directly from its unique vertical architecture.
Superior Stability and Gravity’s Helping Hand
This is the most significant advantage. By having the workpiece rest on the chuck, gravity works with the machine, not against it. This natural stability minimizes vibration, which is the enemy of precision machining. Less vibration means cleaner cuts, better surface finishes, and longer tool life. It also simplifies the work-holding requirements, as the part’s own weight helps keep it in place, reducing the clamping forces that could otherwise distort the component.
Space Efficiency on the Shop Floor
For a given swing diameter (the maximum diameter of a part that can be machined), a VTL typically has a much smaller footprint than its horizontal counterpart. A horizontal lathe capable of swinging a 2-meter diameter part would need to be exceptionally long and wide to accommodate the workpiece and tailstock. A VTL handles the same part within a more compact, vertical structure, making it a more space-efficient choice for factories where floor space is at a premium.
Ideal for Heavy, Awkward, and Large Workpieces
There is simply no better way to machine a heavy, large-diameter, but relatively short component. Loading a multi-ton workpiece onto a horizontal lathe is a logistical and safety nightmare. On a VTL, an overhead crane can easily and safely lower the part directly onto the chuck. This makes VTLs indispensable for producing parts like large industrial valve bodies, jet engine turbine casings, and railway wheels.
Enhanced Precision and Surface Finish
The inherent rigidity and stability of the vertical design translate directly into higher accuracy. With less vibration and no part-sagging to compensate for, VTLs can consistently achieve tighter tolerances and superior surface finishes. This is critical for high-performance components used in the aerospace and defense industries, where even microscopic imperfections can have significant consequences. From our experience at Hirung, customers choose our range of precision VTLs precisely for this reason.
Common Applications: Where Do Vertical Lathes Excel?
The unique strengths of CNC vertical lathes make them the go-to machine in several demanding industries. Their ability to handle massive and precise components means they are often found at the core of heavy manufacturing.
-
- Aerospace: Machining jet engine components, turbine discs, compressor casings, and large structural rings.
– Energy and Power Generation: Creating components for wind turbines (like bearing housings and flanges), parts for nuclear reactors, and large valve bodies for the oil and gas industry.
– Automotive and Railway: Manufacturing large gear blanks, brake drums, flywheels, and railway wheels.
– Heavy Machinery and Construction: Producing large gears for construction equipment, slew rings for cranes and excavators, and other large-scale industrial components.
– Defense: Crafting components for naval vessels, armored vehicles, and missile systems.
Choosing the Right CNC Vertical Lathe for Your Needs
Selecting the right VTL is a critical investment. As manufacturers of these machines, we advise clients to consider several key factors to ensure the chosen model aligns perfectly with their production requirements.
Workpiece Dimensions and Weight
The first question to ask is: what are the typical parts you will be machining? You need to know the maximum diameter (swing), maximum turning height, and maximum weight. Always choose a machine with capacities slightly larger than your biggest part to provide a buffer and future-proof your investment.
Material and Tooling Requirements
Will you be cutting standard steel, aluminum, or exotic alloys like Inconel or titanium? Harder materials require a machine with greater rigidity, more spindle torque, and a robust tooling system. Ensure the machine’s spindle power (kW) and torque (Nm) are sufficient for the materials you plan to machine effectively.
Accuracy and Finish Specifications
Define the level of precision your parts require. This is measured in terms of positioning accuracy and repeatability. High-precision applications, like those in aerospace, may require features like linear scales, thermal compensation systems, and high-resolution encoders to achieve sub-micron tolerances.
Single vs. Double Column VTLs
For smaller diameters (typically under 2 meters), a single-column (C-frame) VTL is often sufficient and more cost-effective. For very large diameters and extreme-duty machining, a double-column (bridge-type) VTL is essential. The dual-column structure provides a much more rigid frame, minimizing tool deflection and maximizing accuracy on massive workpieces.
The Hirung Advantage in Vertical Turning
A CNC Vertical Lathe is a formidable production tool, purpose-built to conquer the challenges of machining large, heavy, and disc-shaped components with unparalleled stability and precision. By leveraging gravity and a compact vertical design, VTLs offer distinct advantages in efficiency, accuracy, and ease of handling for specific applications where horizontal lathes fall short. From aerospace rings to massive industrial gears, the VTL is an essential machine in modern manufacturing.
At Hirung, we don’t just sell machines; we engineer solutions. Our deep understanding of the forces and precision involved in the turning process allows us to build CNC Vertical Lathes that deliver on the promise of reliability and performance. If your operations involve the kind of heavy-duty, high-precision work detailed in this guide, our machines are built for you. We invite you to explore our product lineup or contact our engineering team to discuss how a Hirung VTL can elevate your manufacturing capabilities.
