Vertical Machining Centers (VMCs) are at the heart of modern precision manufacturing, powering industries from aerospace to automotive with unparalleled accuracy and efficiency. But what exactly is VMC Machining, and why has it become a cornerstone of CNC technology? In this article, we’ll explore the ins and outs of VMC Machining—its definition, components, applications, advantages, and more. Whether you’re an engineer, a CNC operator, or simply curious about machining technology, this guide will answer your questions and shed light on how VMCs shape the world around us.
What is VMC Machining?
VMC Machining refers to the process of using a Vertical Machining Center (VMC), a type of CNC (Computer Numerical Control) machine, to cut, shape, and finish materials like metal, plastic, or composites. Unlike traditional manual machines, a VMC operates with computer-programmed precision, allowing it to perform complex tasks such as milling, drilling, boring, and tapping in a single setup.
The defining feature of a VMC is its vertical spindle orientation. The spindle—the part that holds and rotates the cutting tool—moves up and down along the Z-axis, while the workpiece is secured on a table that adjusts along the X and Y axes. This configuration makes VMC Machining ideal for creating intricate parts with tight tolerances, such as engine components or mold cavities.
A Brief History of VMC Machining
The story of VMC Machining begins with the advent of CNC technology in the mid-20th century. Early machining relied on manual lathes and mills, which were labor-intensive and limited in precision. In the 1950s, the introduction of numerical control (NC) revolutionized manufacturing by allowing machines to follow punched-tape instructions. By the 1970s, computer integration gave rise to CNC machines, including the Vertical Machining Center.
VMCs evolved from basic milling machines into versatile, automated systems capable of handling multi-axis operations. Today, advancements in software, sensors, and materials have made VMC Machining a staple in high-tech industries, reflecting decades of innovation in precision engineering.
Key Components of a VMC
A Vertical Machining Center is a sophisticated assembly of components working in harmony. Here are the key parts:
- Spindle: The heart of the VMC, it rotates the cutting tool at high speeds (often 8,000–20,000 RPM or more) to remove material.
- Worktable: The platform where the workpiece is clamped, adjustable along the X and Y axes for precise positioning.
- Automatic Tool Changer (ATC): A system that swaps tools (e.g., drills, mills) quickly, reducing downtime.
- Control Panel: The interface where operators input CNC programs, typically using G-code or CAD/CAM software.
- Coolant System: Delivers fluid to reduce heat and friction during cutting.
- Guideways and Servo Motors: Ensure smooth, accurate movement of the spindle and table.
Each component contributes to the VMC’s ability to deliver consistent, high-quality results.
How Does VMC Machining Work?
VMC Machining combines advanced software with mechanical precision. Here’s a step-by-step look at the process:
- Design: Engineers create a 3D model of the part using CAD (Computer-Aided Design) software.
- Programming: The design is converted into machine instructions (G-code) via CAM (Computer-Aided Manufacturing) software.
- Setup: The workpiece is secured on the VMC’s table, and the appropriate tool is loaded into the spindle.
- Machining: The spindle moves vertically, cutting into the material based on programmed toolpaths. The table adjusts horizontally to shape the workpiece.
- Finishing: Additional tools refine the part, ensuring smooth surfaces and precise dimensions.
- Inspection: The finished part is checked against tolerances, often using onboard probes or external gauges.
This automated workflow ensures repeatability and accuracy, making VMC Machining a go-to solution for complex manufacturing tasks.
Applications of VMC Machining
VMC Machining shines in industries requiring precision and versatility. Here are some key examples:
- Aerospace: Crafting turbine blades, structural components, and landing gear parts with tolerances as tight as 0.01mm.
- Automotive: Producing engine blocks, transmission housings, and brake components.
- Mold and Die Making: Shaping molds for injection molding or stamping processes.
- Medical: Manufacturing surgical tools, implants, and prosthetics from biocompatible materials.
- Electronics: Creating enclosures and heat sinks for devices.
The ability to handle diverse materials—steel, aluminum, titanium, or even plastics—makes VMCs indispensable across sectors.
Advantages of VMC Machining
Why choose VMC Machining over other methods? Here are its standout benefits:
- High Precision: VMCs achieve tolerances in the micron range, critical for industries like aerospace.
- Efficiency: The ATC and multi-axis capabilities reduce setup time and allow continuous operation.
- Versatility: A single VMC can perform milling, drilling, and tapping, eliminating the need for multiple machines.
- Cost-Effectiveness: Ideal for small to medium production runs, balancing quality with affordability.
- Ease of Use: Vertical orientation simplifies workpiece loading and visibility for operators.
These advantages make VMC Machining a preferred choice for manufacturers worldwide.
Limitations of VMC Machining
Despite its strengths, VMC Machining has some drawbacks:
- Size Constraints: The vertical design limits the height and width of workpieces compared to horizontal machines.
- Chip Removal: Gravity can cause chips to accumulate on the workpiece, requiring robust coolant systems.
- Initial Cost: VMCs, especially advanced models, represent a significant investment.
For large-scale or heavy-duty tasks, manufacturers may opt for alternatives like Horizontal Machining Centers (HMCs).

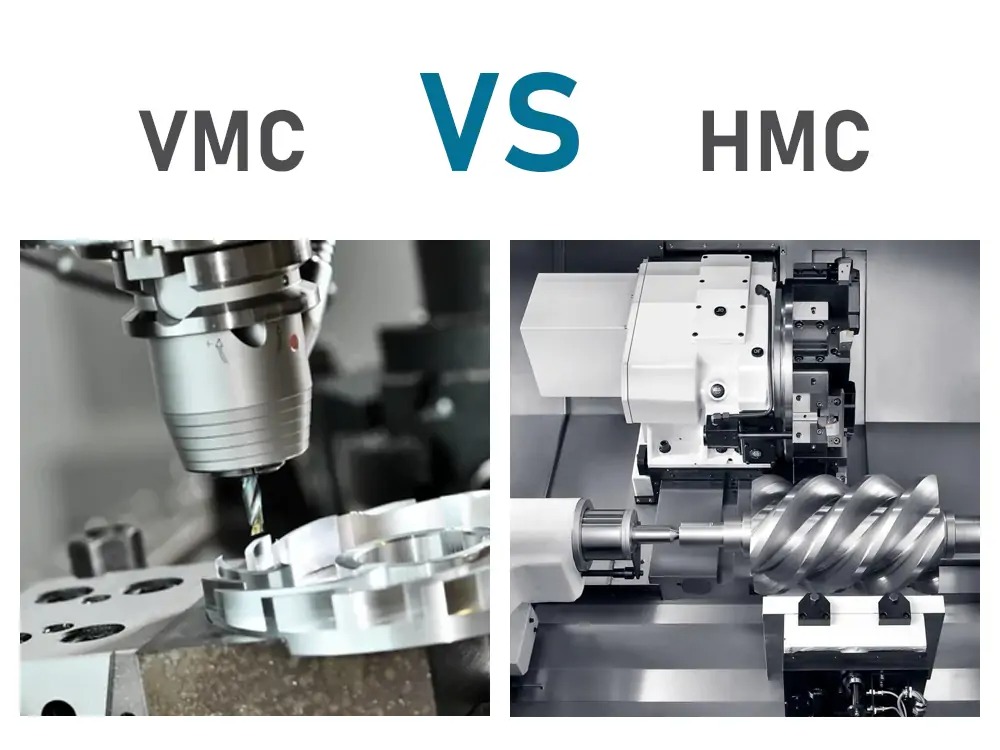

VMC vs. HMC: What’s the Difference?
A common question is how VMC Machining compares to HMC (Horizontal Machining Center) Machining. Here’s a breakdown:
- Orientation: VMCs have a vertical spindle; HMCs have a horizontal spindle.
- Workpiece Size: VMCs suit smaller, lighter parts; HMCs handle larger, heavier ones.
- Chip Management: HMCs excel at clearing chips due to gravity, while VMCs may need extra attention.
- Cost: VMCs are generally more affordable and easier to set up.
For precision on small to medium parts, VMCs are the go-to. For high-volume production or massive components, HMCs may take the lead.
| Feature | VMC | HMC |
| Spindle Orientation | Vertical | Horizontal |
| Ideal Workpiece | Small to Medium | Large and Heavy |
| Chip Removal | Moderate | Excellent |
| Cost | Lower | Higher |
Choosing and Using a VMC: Practical Tips
Selecting and operating a VMC requires careful planning. Here’s some advice:
- Consider Your Needs: Match the VMC’s table size, spindle speed, and axis capabilities to your workpiece and material.
- Budget Wisely: Balance initial costs with long-term benefits like durability and precision.
- Maintenance: Regularly clean the machine, check coolant levels, and calibrate tools to maintain performance.
- Training: Ensure operators are skilled in CNC programming and safety protocols.
Partnering with a reputable manufacturer can also enhance your experience, offering advanced machines and reliable support.
Conclusion
VMC Machining, powered by Vertical Machining Centers, is a transformative force in manufacturing. From its precise cutting capabilities to its wide-ranging applications, it exemplifies the marriage of technology and craftsmanship. While it has limitations, its advantages—precision, efficiency, and versatility—make it a vital tool for industries worldwide.
As automation and smart manufacturing continue to evolve, VMC Machining is poised to play an even bigger role in shaping the future. Whether you’re crafting aerospace components or exploring CNC technology, understanding VMC Machining opens the door to a world of possibilities. What’s your experience with VMC Machining? Let us know in the comments!
