5 Axis CNC Machining Center
High-Performance 5 Axis CNC Machining Center - DV Series
The DV Series 5 axis CNC machining center from HIRUNG is built for manufacturers that need to machine large, heavy, and geometrically complex parts in a single setup. With a direct-drive B-axis, a 1200 kg rotary table load, and +-0.005 mm repeatability, this high precision 5 axis machining center reduces fixtures, setups, and datum errors across aerospace, mold, medical, automotive, and energy production.
Overview

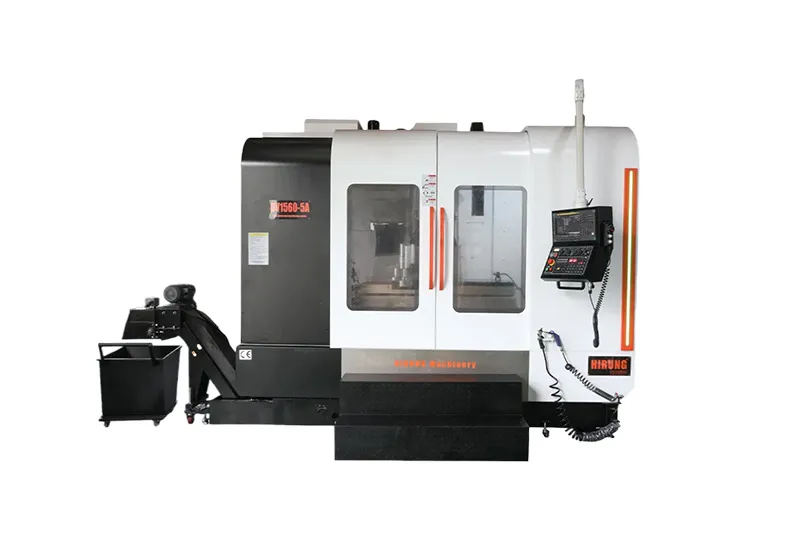

DV1560 5 Axis CNC Machining Center: Built for Large, Heavy, High-Precision Parts
Launched by HIRUNG in 2018, the DV1560 is a high-precision 5 axis CNC machining center engineered for R&D and production environments that handle larger, heavier components. It delivers the load capacity, rigidity, and accuracy required for aerospace, automotive, and energy workpieces that smaller machines cannot stabilize.
A large 5 axis CNC machine only earns its floor space when it can hold accuracy under load. The DV1560 pairs a 1200 kg rotary table with a heavily ribbed Meehannite FC30 casting, so heavy blanks stay dimensionally stable through long cutting cycles instead of drifting as the structure warms up or flexes.
Because the workpiece can be tilted and rotated in one clamping, the DV1560 completes five-sided and contoured features without repeated repositioning – the core reason shops choose a 5 axis machining center for complex parts over running the same job across multiple 3-axis setups.
Customer photo
Customer-supplied DV1560 photo (replace the AI hero image with the real machine shot)
The hero uses an AI-generated representative 5-axis machine. Swap in the actual DV1560 workshop/equipment photo here before publishing.
Part Size and Table Load Capacity
3-axis capacity: parts up to 1300 mm (L) x 800 mm (W) x 800 mm (H).
5-axis capacity: parts up to O800 mm diameter x 800 mm height.
Maximum table load: 1200 kg, maintaining stability and reliability under demanding workloads.
Key Features at a Glance
Single-setup 5-sided machining
Tilt and rotate the workpiece to cut complex faces in one clamping, cutting fixtures and datum error.
1200 kg rotary table load
Stabilizes large, heavy blanks that light-duty 5 axis machines cannot hold accurately.
Direct-drive B-axis, +-110 deg
Integrated spindle and B-axis with DD motor and circular optical ruler for smooth simultaneous motion.
+-0.005 mm repeatability
Positioning accuracy X/Y/Z <=0.01 mm; repeatability <=0.005 mm (VDI 3441).
BBT40 built-in spindle, 14000 rpm
Motorized electro-spindle for both heavy cutting and high-speed finishing.
24-tool arm magazine, 1.5 s exchange
Fast tool changes keep multi-operation parts moving without long chip-to-chip delays.
Spindle & B-Axis
High-Precision Spindle and Direct-Drive B-Axis Integration
In the DV Series 5 axis CNC machining center, the spindle and B-axis are combined into a single unit. This eliminates the accuracy loss commonly caused by repeated assembly, so machining results stay consistent part after part.
The B-axis uses a DD (direct drive) built-in electric spindle with a circular optical ruler, achieving an impressive +-110 deg indexing range and a positioning accuracy of 0.0015 deg.
Equipped with a BBT40 built-in electric spindle, the system reaches speeds up to 14,000 rpm – suitable for heavy cutting, high-precision machining, and diverse industry applications from aluminum to steel.
Integrated spindle + B-axis
One unit, no re-assembly error, better long-term accuracy.
DD direct-drive B-axis
Circular optical ruler, +-110 deg indexing, 0.0015 deg positioning.
BBT40 motor spindle, 14000 rpm
Balanced for heavy cutting and high-speed finishing.
Structure
Reinforced Mechanical Structure for Long-Term Accuracy
Accuracy on a 5 axis CNC machining center is decided by the structure, not just the control. The DV Series is engineered to stay rigid and thermally stable through long production runs.
Meehannite FC30 Castings
The 5 axis CNC machining center is built using Meehannite FC30 castings, aged for 90 days to prevent deformation over the machine's lifetime. This robust foundation weighs 12,000 kg and provides exceptional rigidity and durability.
Optimized X / Y / Z Axis Layout
The X-axis adopts a lower structure while the Y-axis uses an upper structure. This design effectively prevents sagging at extreme travel limits, ensuring superior dynamic accuracy.
Widened Roller Linear Guides
High-precision heavy-duty roller linear guides with extra sliders protect rigidity under load:
X-axis: 6 heavy-duty sliders; Y-axis: 8 heavy-duty sliders; Z-axis: 6 heavy-duty sliders.
The rigidity and precision of the machine tool are effectively guaranteed by this widened guide layout.
24-Tool Arm-Type Tool Magazine
The standard configuration uses a 24-tool arm-type magazine. Tool exchange time is 1.5 seconds, supporting uninterrupted multi-operation machining of complex parts.
Maintenance
Multi-Language Electrical System for Easy Maintenance
Every machine and electrical component in the DV Series 5 axis CNC machining center is labeled in Chinese, English, and Russian. Even operators who are not circuit experts can identify each component's function at a glance.
By giving instant clarity on the role of each part, downtime is minimized and troubleshooting becomes straightforward – keeping production lines running. From seasoned engineers to new staff, anyone can confidently navigate and maintain the machine thanks to the intuitive, multilingual labeling system.
Trilingual labeling (CN / EN / RU)
Faster fault finding and safer maintenance across global sites.
Less downtime
Clear component identification shortens troubleshooting and training time.
Applications
5 Axis CNC Machining Center Applications Across Industries
A 5 axis machining center earns its value on parts that would otherwise need repeated repositioning or complex fixtures. By approaching the workpiece from any angle in one setup, the DV Series holds the positional relationship between complex surfaces – exactly what these industries demand.
Aerospace parts: turbine blades, impellers, structural components
Aerospace and Defense
Aerospace work – titanium structural parts, turbine blades, impellers, and curved airframe components – needs rigidity for heavy cutting and fine surface control for finishing. The DV Series rotary table and direct-drive B-axis hold angular accuracy on deep cavities and angled surfaces where 3-axis access falls short.
Automotive and New-Energy Vehicles
From engine and transmission components to new-energy parts such as electric motor housings and battery cooling plates, the DV Series machines multi-face features in fewer setups. Shorter tool overhang when the spindle tilts toward the cut also improves rigidity and surface quality.
Automotive and NEV parts: e-motor housings, battery cold plates
Mold and die: injection molds, die-casting and stamping dies
Mold and Die Manufacturing
Deep cavities, complex cores, and intricate details need tool access from multiple angles. The DV Series reaches inclined surfaces and curved cavities that are hard to polish by hand, cutting EDM and manual finishing time on injection, die-casting, and stamping tooling.
Medical and Orthopedic Implants
Patient-matched implants and surgical components have organic, complex geometries and strict surface requirements. The DV Series machines titanium implants and instruments in one setup, holding the contour accuracy that biocompatible parts require.
Medical parts: orthopedic implants, spinal plates, surgical components
Energy and fluid parts: pump impellers, valve bodies, hydraulic components
Energy, Fluid, and Hydraulic Equipment
Pump impellers, valve bodies, and hydraulic components are large, complex, and often made from hard-to-cut alloys. The DV Series combines table load, rigidity, and rotary-axis accuracy to machine three-dimensional curved blades and multi-face ports in a single clamping.
General Precision Engineering and Job Shops
For mixed part families, flexibility matters more than extreme specialization. The DV Series work envelope, fast changeovers, and open CAM compatibility let subcontract shops take on varied orders – from precision fixtures to complex general engineering work – without re-fixturing for every job.
Specifications
Technical Specifications
DV1350-5A and DV1560-5A share the same 5 axis architecture with different travels and table sizes.
| Specification | DV1350-5A | DV1560-5A |
|---|---|---|
| X-axis travel | 1100 mm | 1300 mm |
| Y-axis travel | 650 mm | 800 mm |
| Z-axis travel | 800 mm | 800 mm |
| B-axis rotation range | +-110 deg | +-110 deg |
| C-axis rotation range | 360 deg | 360 deg |
| Spindle center to column | 599 mm | 599 mm |
| Table working surface | 600 x 1300 mm | 800 x 1500 mm |
| Table built-in circle | O500 mm | O600 mm |
| Max. table load | 900 kg | 1200 kg |
| T-slot size | 18/5 mm | 18/5 mm |
| Spindle type | BBT-40 (SK-40) | BBT-40 (SK-40) |
| Spindle max. speed | 14000 rpm (motor spindle) | 14000 rpm (motor spindle) |
| Spindle power | 18.5 kW (FANUC) | 18.5 kW (FANUC) |
| Positioning accuracy X/Y/Z | <=0.01 mm (VDI 3441) | <=0.01 mm (VDI 3441) |
| Repeatability X/Y/Z | <=0.005 mm (VDI 3441) | <=0.005 mm (VDI 3441) |
| B/C positioning accuracy | +-10 sec | +-10 sec |
| B/C repeatability | +-4 sec | +-4 sec |
| Control system | FANUC 0i MF | FANUC 0i MF |
| Power supply | 380 V, 3-phase, 50 Hz | 380 V, 3-phase, 50 Hz |
| Net weight | 11000 kg | 12000 kg |
| Floor space (L x W x H) | 3200 x 3000 x 3350 mm | 3200 x 3200 x 3350 mm |
Standard Accessories
Fully enclosed guard; working light; 24T arm-type tool magazine; warning light; spindle oil cooling; M30 auto power off; cutting coolant system; removable hand pulse generator; automatic centralized lubrication system; RS-232; hydraulic unit; electric box heat exchanger; spindle blowing device; tool box; chip cutting device; leveling bolts and pads; twin screw + chain plate chip conveyor; operation and maintenance manual; automatic tool measuring device; spindle water cooling device.
Optional Accessories
5-axis linkage CNC system (SYNTEC 220 / FANUC 31i HB5 / Siemens ONE); X/Y/Z axis optical ruler feedback system; oil-water separation device; automatic workpiece measuring device; oil mist collection device; automatic door.
Core Components and Country of Origin
| No. | Component | Origin |
|---|---|---|
| 1 | FANUC 0i MF controller | Japan |
| 2 | Axial servomotor | Japan |
| 3 | Inset display unit | Taiwan |
| 4 | Imported spindle BBT-40 14000 rpm | Germany (INNA) |
| 5 | Class C3 ball screw | Taiwan (HIWIN / PMI) |
| 6 | Three-axis flexible linear rail cover | Taiwan |
| 7 | Spindle motor coil: FANUC / Spindle: Spintrue | Japan / Taiwan |
| 8 | Central auto-lubrication system | Taiwan |
| 9 | Angled imported ball bearing | Japan (NSK) |
| 10 | Axial couplings | Japan |
| 11 | Operation panel unit | Taiwan |
| 12 | Imported MAG handwheel | Japan |
| 13 | Working light | Taiwan |
| 14 | Relay board | Japan |
| 15 | Control panel convective heat exchanger | Taiwan |
| 16 | Spindle sided blowing devices | Taiwan |
| 17 | Air pressure gun and hydraulic gun devices | – |
| 18 | Horizontal adjustment bearer | – |
| 19 | Technical manual | – |
Why HIRUNG
Why Choose HIRUNG?
HIRUNG was established in January 2015. Since then our machine tools have been sold to 33 countries and regions worldwide. We apply high-standard manufacturing processes so HIRUNG CNC machines deliver precision and stability that stand up in demanding production environments.
From material quality to day-to-day usability and maintenance, every DV Series machine is built around the points buyers actually verify: casting rigidity, rotary-axis accuracy, spindle suitability, control compatibility, and accessible after-sales support.
In-house manufacturing since 2015
Exported to 33 countries and regions with consistent build quality.
90-day casting aging
Meehannite FC30 castings are stress-relieved before machining to prevent long-term deformation.
Trusted component brands
FANUC control, NSK bearings, HIWIN/PMI ball screws, and imported BBT-40 spindle.
Multilingual support and docs
CN / EN / RU labeling and manuals reduce training and maintenance friction on global sites.
Factory acceptance and sample cuts
We support evaluation by representative part, tolerance band, and surface-finish target before order confirmation.
In-process inspection and acceptance support at HIRUNG
Testimonials
Hear the Voices of Our Clients
[Client to insert real, verifiable testimonials here – company name, country, part type, and the result achieved. Do not publish placeholder quotes; only use feedback you are authorized to share.]
Core Components
Partner Brands in CNC Machines
The DV Series is built on components from established suppliers across Japan, Germany, and Taiwan, including FANUC (control and servomotors), NSK (imported ball bearings), HIWIN / PMI (Class C3 ball screws and linear rail covers), and an imported BBT-40 14000 rpm spindle. These partnerships support the accuracy, reliability, and spare-parts continuity our customers depend on.
FAQ
Frequently Asked Questions
It machines complex, multi-face parts in a single setup by tilting and rotating the workpiece, which reduces fixtures, setups, and datum errors compared with multiple 3-axis operations.
In 3-axis mode up to 1300 x 800 x 800 mm; in 5-axis mode up to O800 mm diameter x 800 mm height; maximum rotary table load is 1200 kg.
The standard machine runs 3+2 indexing with a FANUC 0i MF control. Simultaneous 5-axis linkage is available as an option with SYNTEC 220, FANUC 31i HB5, or Siemens ONE.
An integrated BBT40 built-in electric (motor) spindle reaching 14000 rpm, combined with a direct-drive B-axis (+-110 deg, 0.0015 deg positioning).
B/C-axis positioning accuracy is +-10 sec with +-4 sec repeatability, and maximum indexing resolution is 0.001 deg.
Aerospace and defense, automotive and new-energy vehicles, mold and die, medical and orthopedic implants, energy/fluid/hydraulic equipment, and general precision job-shop work.
Standard FANUC 0i MF; optional 5-axis linkage systems from SYNTEC, FANUC, or Siemens depending on the application.
We provide commissioning, operator training, spare-parts support, and multilingual documentation (Chinese, English, Russian), backed by export experience to 33 countries and regions.
