HPG Series: High-Precision CNC Gantry Machining Centers
The HPG Series is a range of high-precision CNC gantry machining centers built for heavy-duty, large-workpiece cutting. Each machine uses a moving-beam (moving gantry) architecture with a fixed table, giving it the rigidity, thermal stability, and repeatable accuracy that mold, aerospace, and medical manufacturers demand. Whether you machine a single large casting or run mixed-batch production, the HPG Series delivers consistent speed and precision regardless of workpiece weight.

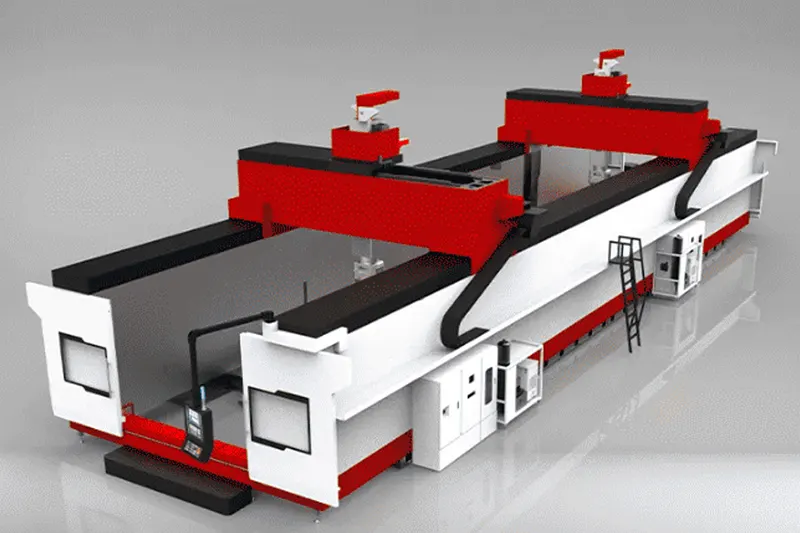

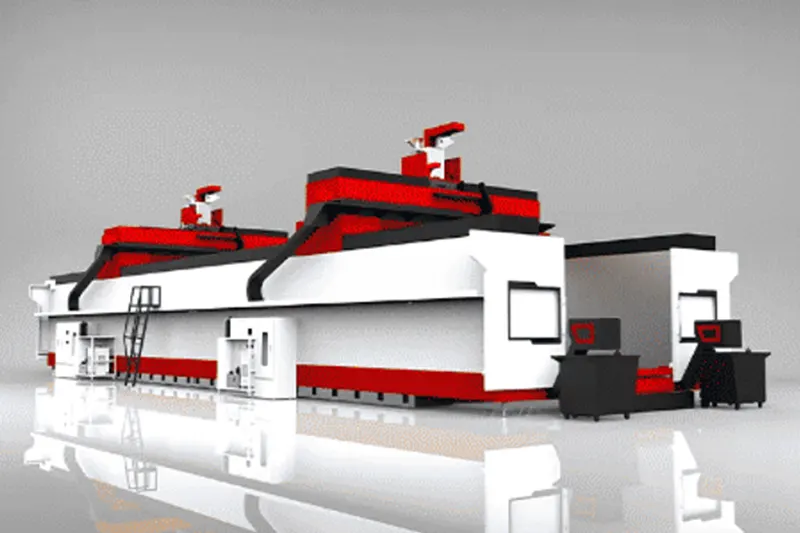

What Is a Moving-Beam CNC Gantry Machining Center?
A moving-beam gantry machining center keeps the worktable stationary while the gantry (crossbeam and spindle carrier) travels over the part. This is fundamentally different from a moving-table or moving-column design, where the heavy table or column must accelerate the full workpiece mass.
Because the moving mass stays constant, the HPG Series can be calibrated once against real load data and then hold accuracy across light and heavy parts alike. The table-fixed layout also places every axial guideway and protective cover above the workpiece, so chips, dust, and cutting fluid never contaminate the rails. The result is longer guideway life, cleaner lubrication, and a footprint up to 60% smaller than an equivalent moving-table machine.
Key Features of the HPG Series CNC Gantry Machining Centers
Ten engineering decisions separate the HPG Series from conventional gantry mills. Together they target the three things that matter most in heavy cutting: rigidity, accuracy retention, and uptime.
01
Uncompromised Load Capacity
The HPG Series handles workpieces of almost any weight. As long as the part fits within the machine envelope, it can be machined precisely — the workpiece mass does not compromise performance.
02
Consistent High-Speed Performance
Movement speed stays matched to the design specification regardless of workpiece weight, delivering high speed, precision, efficiency, and a longer machine life.
03
Stable and Durable Moving Components
Moving parts are engineered for minimal, uniform wear, sustaining accuracy and lengthening service life under continuous operation.
04
Long-Term Precision Retention
Components are designed to minimize impact variation, so the machine keeps its precision even after extended use.
05
Load-Based Movement Calibration
Setup calibration uses actual load data with compensation adjustments. A constant moving mass lets every operation reach high precision.
06
Fixed Moving Mass with Dual Servo Drive
The X-axis uses a dual servo direct-drive system on a constant moving mass, effectively guaranteeing machining accuracy.
07
Compact Footprint
The HPG Series occupies up to 60% less floor space than a traditional moving-table machine with the same processing capability.
08
Enhanced Guideway Protection
All axial guideways and covers sit above the workpiece, blocking debris, dust, and cutting fluid from the rails and keeping rail oil separate from the coolant.
09
Simultaneous Loading and Machining
With proper safety protocols, a new workpiece can be loaded on one side while machining continues on the other, raising throughput.
10
Non-Standard Customization
Travel can be extended to X up to 60 m, Y up to 8 m, and Z up to 3 m, with bespoke widths and heights on request.
HPG Series CNC Gantry Machining Center Specifications
The HPG Series is offered in whole-body (integrated) and split (beam/column separable for large spans) configurations. All models share BT50 spindles, 20/20/20 m/min rapid feed, and SIEMENS control as standard.
Whole-Body Style — 10 / 16 / 20 Series
| Model | Travel (X/Y/Z) mm | Table size (mm) | Max feeding height (mm) | Spindle power | Machine weight (Ton) | Control system |
|---|---|---|---|---|---|---|
| HPG1810 | 2000×1050×550 | 1900×1000 | 730 | 12/18 kW (115/172 Nm) | 15.5 | SIEMENS 828D / FANUC 0iMF |
| HPG2216 | 2500×1600×800 | 2200×1600 | 950 | SIEMENS 16/20 kW; FANUC 15/18.5 kW | 25 | SIEMENS 828D / FANUC 0iMF |
| HPG3016 | 3200×1600×800 | 3000×1600 | 950 | SIEMENS 16/20 kW; FANUC 15/18.5 kW | 30 | SIEMENS 828D / FANUC 0iMF |
| HPG4016 | 4200×1600×800 | 4000×1600 | 950 | SIEMENS 16/20 kW; FANUC 15/18.5 kW | 33 | SIEMENS 828D / FANUC 0iMF |
| HPG3020 | 3200×2000×1000 | 3000×2000 | 1150 | SIEMENS 16/20 kW; FANUC 15/18.5 kW | 38 | SIEMENS 828D / FANUC 0iMF |
Spindle taper BT50; spindle speed 8000 rpm (belt); rapid feed (X/Y/Z) 20/20/20 m/min. Full torque and option details on request.
Split Style — 25 / 30 Series
| Model | Travel (X/Y/Z) mm | Table size (mm) | Max feeding height (mm) | Spindle power | Machine weight (Ton) | Control system |
|---|---|---|---|---|---|---|
| HPG4025 | 4200×2500×1200 | 4000×2100 | 1500 (custom) | 28/42 kW (268/401 Nm) | 42 | SIEMENS 828D / 840D |
| HPG6025 | 6200×2500×1200 | 6000×2100 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 52 | SIEMENS 828D / 840D |
| HPG6030 | 6200×3000×1200 | 6000×2600 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 58 | SIEMENS 828D / 840D |
| HPG8030 | 8200×3000×1200 | 8000×2600 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 70 | SIEMENS 828D / 840D |
| HPG12030 | 12200×3000×1200 | 12000×2600 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 115 | SIEMENS 828D / 840D |
Spindle taper BT50; spindle speed 8000 rpm (belt) / 6000 rpm (gearbox, optional); rapid feed (X/Y/Z) 20/20/20 m/min.
Split Style — 35 Series (Extra-Wide)
| Model | Travel (X/Y/Z) mm | Table size (mm) | Max feeding height (mm) | Spindle power | Machine weight (Ton) | Control system |
|---|---|---|---|---|---|---|
| HPG4035 | 4200×4000×1200 | 4000×1800 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 48 | SIEMENS 828D / 840D |
| HPG6035 | 6200×4000×1200 | 6000×1800 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 58 | SIEMENS 828D / 840D |
| HPG8035 | 8200×4000×1200 | 8000×2600 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 70 | SIEMENS 828D / 840D |
| HPG12035 | 12200×4000×1200 | 12000×2600 | 1500 (custom) | 28/42 kW (gearbox 1070/1604 Nm) | 115 | SIEMENS 828D / 840D |
Max feeding width 3500 mm. Spindle taper BT50; rapid feed (X/Y/Z) 20/20/20 m/min.
Non-Standard Customization
The HPG Series supports non-standard customization. Maximum configurable travel reaches X up to 60 m, Y up to 8 m, and Z up to 3 m, with tailored table widths, heights, and spindle configurations. Contact our sales team or a local dealer for a purpose-built solution.

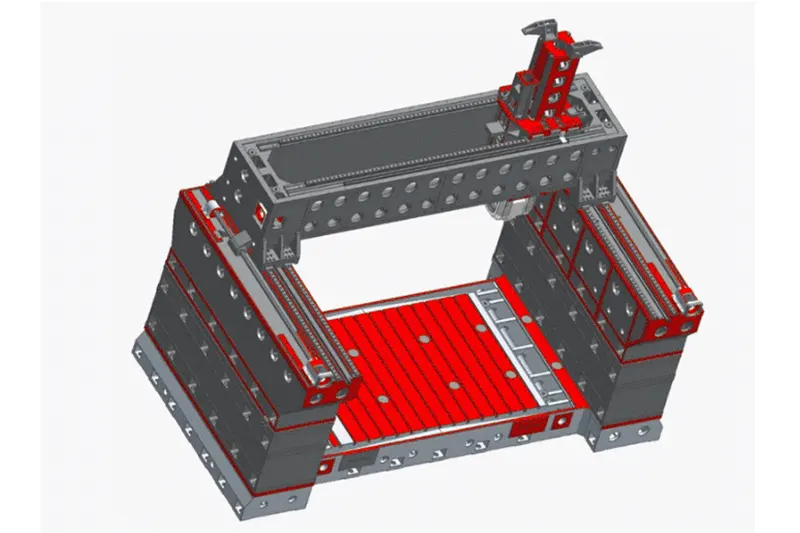

Innovative Box-in-Box Crossbeam Design for Z-Axis Rigidity
The HPG Series features HIRUNG’s patented box-in-box crossbeam structure with four Z-axis guide rails. This geometry resists torsion and bending during heavy cuts, so the spindle stays exactly where it is commanded even under aggressive metal removal.
The Y-axis beams are reinforced with internal stiffeners that never deform, and the Y-axis ball screw runs on a linear-guideway support so it cannot deflect and compromise accuracy — a design especially important on large-span machines.

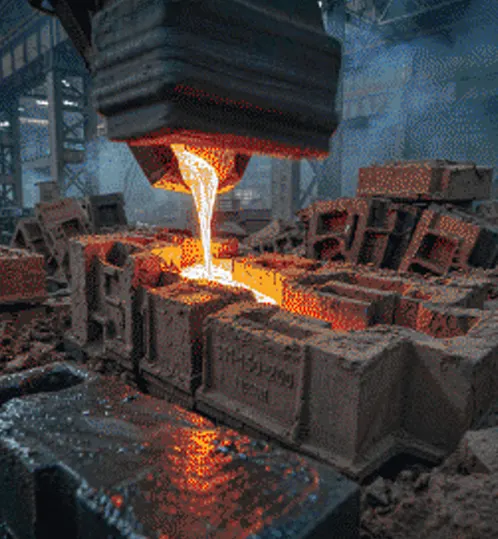

Precision Casting & Rigidity — HIRUNG's Cast Iron Formula
Machine stability begins in the foundry. HIRUNG uses a proprietary cast-iron formula and a strict, multi-stage process to guarantee the rigidity and dimensional stability of every base and column:
After casting, every component goes through a strict annealing procedure to relieve internal stress, preventing warpage over the machine’s service life. The cast iron itself is formulated for high rigidity and stability — the ‘true material counts’ philosophy behind HIRUNG’s secret formula.
- Casting
- Tempering treatment
- Rough processing
- Delicate processing
- Painting dressing
- Finish machining
- Packaging
- End product
| Element | C | Si | Mn | P | S | Cu | Al | Cr | Ni | Mo | Ti | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Content | 3.1–3.25% | 1.6–1.9% | 0.6–0.85% | 0.06–0.1% | 0.06–0.1% | 0.2–0.6% | <0.2% | 0.1–0.2% | <0.5% | <0.5% | 0.05–0.1% | <0.02% |
Additional trace elements controlled: Co <0.1%, Pb <0.01%, N 80–100 ppm, Sn <0.01%, Mg <0.006%.
Spindle & Drive System
The spindle is the heart of any machining center. The HPG Series pairs a heavy-duty BT50 spindle with Japanese NSK P4-class bearings in a dust-free assembly, holding spindle suspension within 0.003 mm.
Standard & Optional Spindles
Standard: 10000 rpm direct-coupled BT50 spindle.
Optional: 18000 / 24000 rpm built-in electric spindle (ISO#40 — BT40 / BBT40 / HSK A63); also configurable with BT50 / HSK A100. For maximum torque, a Germany ZF gearbox spindle delivers up to 380 Nm for heavy cutting.
The 5-axis series adopts Italian HSD and German TRAMEC high-power spindles (24–93 kW) for large cutting force with high precision. Configuration options vary by model — contact the sales manager for details.
5-Axis Machining Capability
HPG 5-axis configurations use MEPRO rotary tables — the T70 (standard, single-arm support) and T200 / T400 (optional, double-arm support). A/C axes deliver ±110° / ±360° rotation, 8 arc-second positioning accuracy, 4 arc-second repeatability, and rotational torque up to 1600/3000 Nm, enabling complex 5-sided and 5-axis simultaneous machining.
| MEPRO model | T70 (standard) | T200 (optional) | T400 (optional) |
|---|---|---|---|
| A-axis rotation | ±110° | ±110° | ±110° |
| C-axis rotation | ±360° | ±360° | ±360° |
| Positioning accuracy | 8″ | 8″ | 8″ |
| Repeatability | 4″ | 4″ | 4″ |
| Rotational speed | 60 rpm | 60 rpm | 60 rpm |
| Rotational torque (Nm) | 700/1060 | 1600/2600 | 1600/2600 |
| Clamping torque (Nm) | 4000 | 6000 | 6000 |
| S1 power (kW) | 30 | 70 (OP 76) | 70 (OP 76) |
| Spindle form | HSK A63 | HSK A100 | HSK A100 |
5-axis models use SIEMENS 840D control. Full specifications on request.
Core Components & Build Quality
Every HPG machine is built from globally sourced, name-brand components selected for heavy-duty reliability:
- Guideway: Japan THK heavy-load roller guideways; the Z-axis runs on four roller guide rails for heavy and high-speed cutting.
- Ball screw: Japanese P4-class ball screws with 3+2 pre-tensioning for rigidity and long life; all couplings are Germany KTR.
- Electrical: Germany Schneider / OMRON components in a CE-standard control cabinet built for export to Europe.
- Optional FAGOR optical scale for even higher positioning accuracy.
- Tooling: 20-tool magazine (optional) with a 2.2-second tool exchange; up to four 20-tool units for high-mix production.
- Lubrication: volumetric distributor with offline oiling for precise, waste-free guideway lubrication.
- Control: SIEMENS 828D standard; SIEMENS 840D for 5-axis; HEIDENHAIN optional.
Applications of HPG Gantry Machining Centers
The large envelope, high rigidity, and configurable 3- to 5-axis capability make the HPG Series suitable for precision machining of oversized and complex parts across multiple industries.

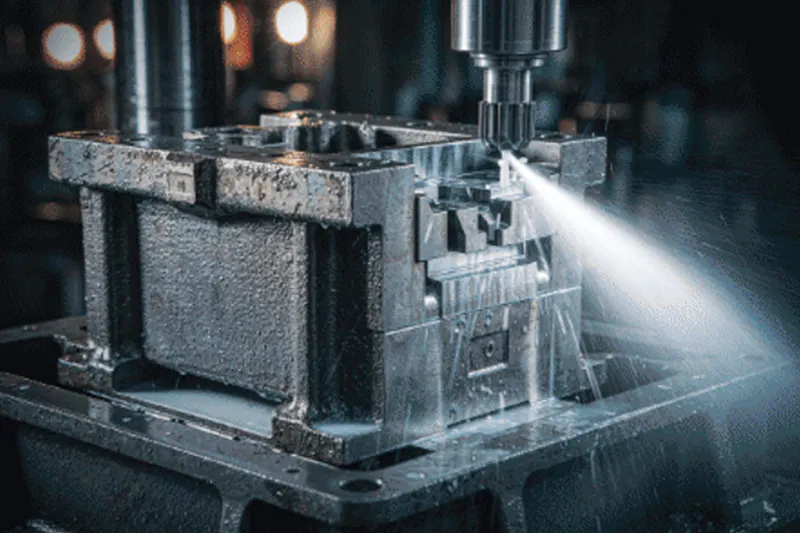

Mold & Die
Large plastic molds, die-casting dies, and stamping tools are where gantry centers excel. The HPG Series removes massive material volumes in roughing, then holds fine finishing passes for superior surface quality — all on a single setup. Its stable cast base keeps the part accurate through long, demanding cuts.

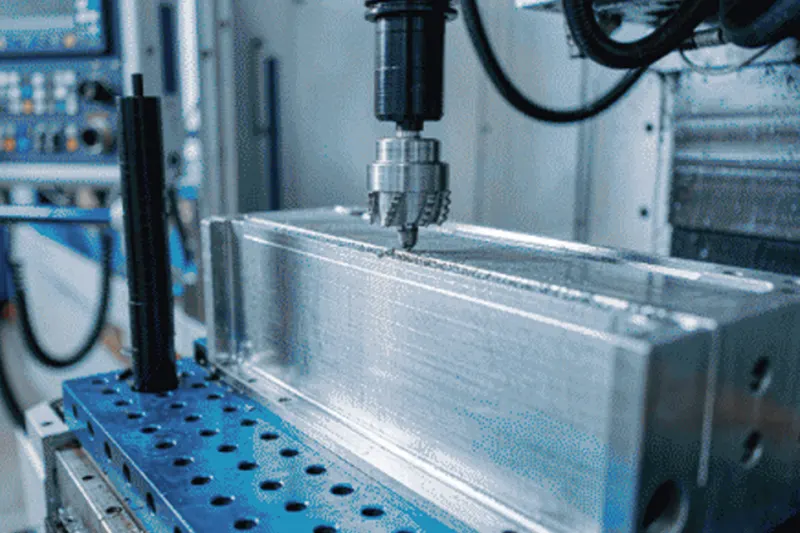

Aerospace
Aerospace structural parts demand tight tolerances on large aluminum and titanium components. The moving-beam design and box-in-box crossbeam maintain geometric accuracy on long spans, while optional 5-axis tables enable complex contoured surfaces in fewer setups.

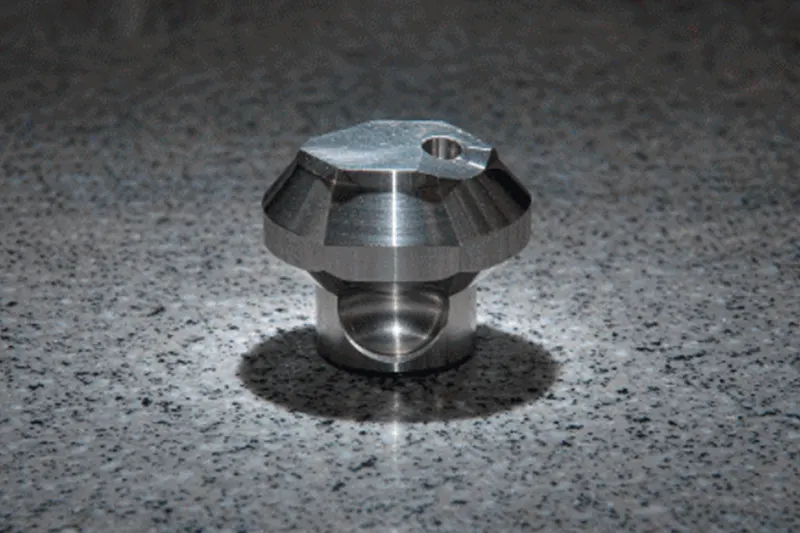

Medical Instruments
Medical implants and instrument components require flawless surface finish and repeatable precision. HIRUNG’s strict casting, annealing, and inspection discipline — backed by ISO 9001 — supports the quality traceability medical manufacturers expect.
Large-Part & Heavy-Industry Machining
Beyond the three core sectors, HPG gantry centers are widely used for energy-equipment components, marine and shipbuilding parts, rail-transit structures, and general large-workpiece machining where a moving-table VMC simply cannot reach. Custom spans up to 60 m make even oversized fabrications achievable.
Why Choose HIRUNG?
HIRUNG (Dong Guan HIRUNG Precision Machinery Co., Ltd) was established in January 2015. Since then our machine tools have been exported to 33 countries and regions, with quality and precision recognized as higher than typical Chinese brands. We engineer from product quality through to the convenience of daily use and maintenance.
- Every day our engineers focus on three questions: how to make maintenance more convenient for customers, how to deliver the most stable equipment, and how to approach a zero machine-failure rate.
- 7×24 service philosophy — 'Service first, Customer first.'
- Mature international packaging and logistics: wooden or steel pallets plus vacuum packaging protect machines from water, rust, corrosion, and scratches in transit.
- Certified to CE and ISO 9001 quality management standards.
Brand established
0
Countries served
0
+
CE / ISO9001
Certified quality
Service support
0
×24
Quality you can verify
From proprietary casting and strict annealing to CE-standard cabinets and an ISO 9001 system, every HPG machine is built for stability that end users around the world rely on.
Manufacturing Excellence & Quality Assurance
Stability is HIRUNG’s top priority. Among users in 33 countries, roughly half are end users who buy directly — so machine reliability is non-negotiable. Nine years of international feedback describe HIRUNG as one of the most stable machine tools in the world.
Quality is enforced at every stage: proprietary cast iron with strict annealing, name-brand core components, CE-standard electrical cabinets, and a mature inspection library. On each nameplate we print after-sales contact details (email, phone, WhatsApp, WeChat) so support is always reachable.
Hear the Voices of Our Clients
HIRUNG machines run in 33 countries across mold, aerospace, medical, and heavy-industry workshops. Below are representative endorsements — replace these placeholder quotes with verified customer testimonials before publishing.
Placeholder — verified quote needed
About the HPG Series: [… client name, country, industry …] “The rigidity on long molds is outstanding, and uptime has been excellent.”
Placeholder — verified quote needed
About after-sales: [… client name, country …] “Response is fast and the fault-code guidance lets our team fix issues without a service visit.”
Placeholder — verified quote needed
About 5-axis: [… client name, country …] “The MEPRO rotary table holds accuracy on complex aerospace parts we could not do before.”
Partner Brands in CNC Machines
The HPG Series is built on a supply chain of globally recognized component brands, giving buyers confidence in spare parts availability and long-term support:
- SIEMENS (CNC control)
- FANUC (CNC control)
- HEIDENHAIN (optional control)
- NSK (spindle bearings)
- THK (roller guideways)
- KTR (couplings)
- Schneider (electrical)
- OMRON (electrical)
- ZF (gearbox spindle)
- HSD (5-axis spindle)
- TRAMEC (5-axis spindle)
- FAGOR (optical scale)
Frequently Asked Questions
Practical answers for procurement, logistics, and support.
A gantry (double-column) machining center moves the spindle carrier over a fixed table and is built for large, heavy workpieces. A vertical machining center has a fixed column and a moving table, better suited to smaller parts. The HPG Series is a moving-beam gantry center for large-part heavy cutting.
Contact our salesperson with the required model, configuration, and part drawings. Our engineers provide a selection plan and quotation, then we sign a sales contract.
Settlement currencies: USD, EUR, or RMB. Payment methods: T/T and L/C. Typical terms: 30% production deposit, 70% before shipment.
Standard models: within 30 days. Customized equipment: within 180 days. Some models are in stock.
We use wooden/steel pallets plus vacuum packaging with protective layers against water, rust, and scratches. Common trade terms: EXW / FOB / CIF, adapted to your country.
Free per your needs: machine passport (inspection certificate), photos, operation manual, pre-acceptance agreement, CE documents, packing list, bill of lading (CIF), insurance policy (CIF), and certificate of origin.
Local distributors assist end-to-end. For direct end users: level the machine, connect accessories (chip conveyor, pump) and power per markings, then connect main power (phase-sequence protection indicates correct wiring). Then you can start.
Local dealers provide support where present. For direct end users, HIRUNG provides fault-code guidance, labeled electrical components, a repair teaching library (steps + photos + text), and nameplate after-sales contacts (email, phone, WhatsApp, WeChat).
Yes. Travel can reach X up to 60 m, Y up to 8 m, Z up to 3 m, with tailored widths, heights, and spindle options. Contact sales for a bespoke solution.
